Surface Mount WA8417-AL Fly-Buck Transformer for Isolated Power Supply
Surface Mount WA8417-AL Fly-Buck Transformer for Isolated Power Supply
Features:
- Developed for Automotive Isolated 15 V/4.5 W Bias Power Supply.
Designed to meet basic insulation class with 3 mm creepage and clearance
| Part number |
Input voltage (V)
|
Inductance
±10% (µH)
|
DCR max (mOhms)
pri
|
DCR max (mOhms)
sec
|
Leakage
inductance
max (µH)
|
Turns ratio
pri:sec
|
Isolation
(Vrms)
|
Isat
(A)
|
Output
|
| WA8417-AL |
8 – 28 |
47.0 |
0.185 |
0.37 |
0.42 |
1 : 2 |
2500 |
2.8 |
15 V, 0.3 A |
Shape and Dimensions:

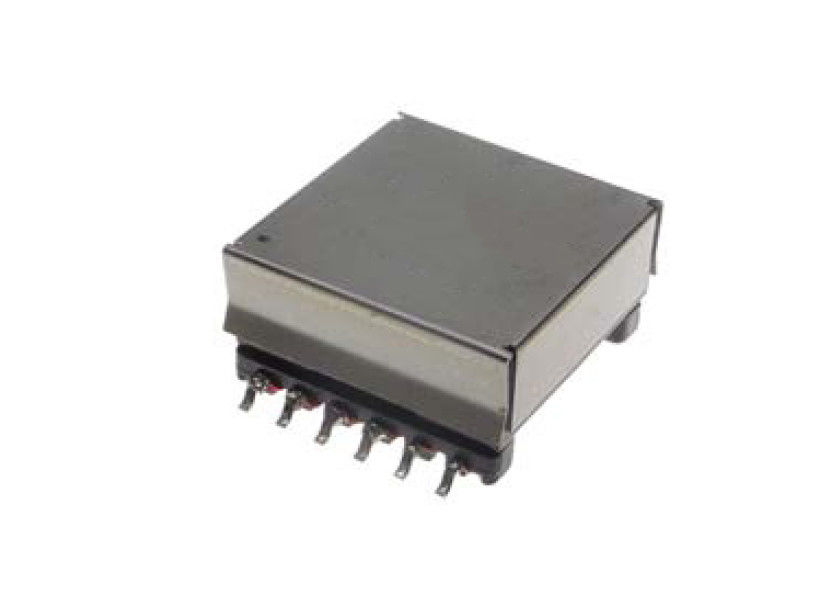

Product picture:
Surface Mount WA8417-AL Fly-Buck Transformer for Isolated Power Supply
